VIBRATION ISOLATORS

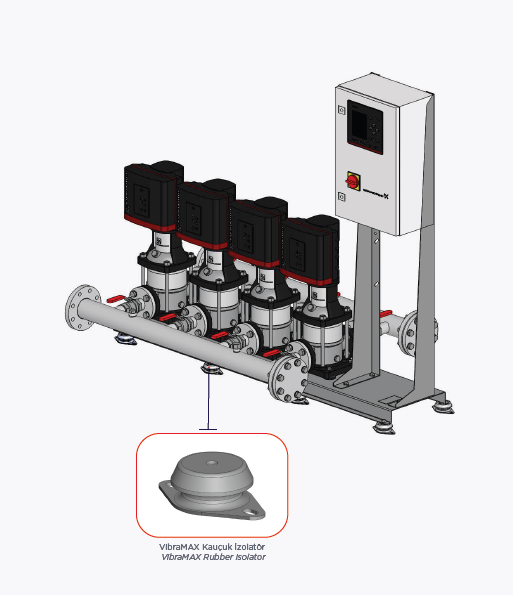

VibraMAX Rubber Isolator

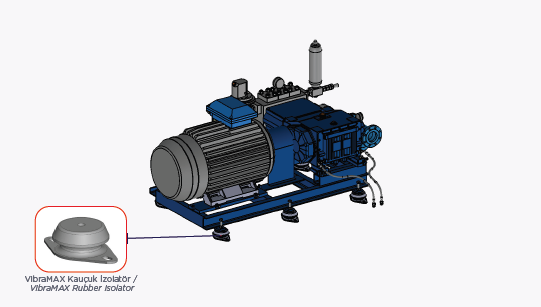

VibraMAX Rubber Isolator

Protected by the galvanised steel shell, rubber element bear the load with a combination of shear and compression.

  1. VibraMax Conical Mounts must be installed two flat surfaces.
  2. Caution should be given to prevent tilting and twisting of the mount.
  3. After placing the equipment use interlocking thread mechanism to secure the installation.

• Material : Steel, Natural Rubber

• Coating : Zinc Plated

• Natural Freq. : 8 ~ 9 Hz

• Provides high vibration isolaton solution for rotating machinery.

• Metal shell prevents substances like oil or diesel which can damage rubber from entering the mount.

• The compact desing allows easy intsallation.

• The steel shell is corrosion protected. Robust design for axial and radial shocks.

Kod
Code		 Yük
Load (Kgf)		 Shore Sertliği Deflection
(mm)		 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 H
(mm)		 F
(mm)		 M
(mm)		 M1
(mm)
4405055100
4405070200		 100
200		 55
70		 80 48 25 65 23 2 8 6,5 x 9
4405055140
4405070240		 140
240		 55
70		 95 60 32 75 27 2,5 8 8,5 x 10
4405055150
4405070260		 150
260		 55
70		 108 65 30 85 31 2,5 10 10,2 x 13
4405055170
4405070290		 170
290		 55
70		 132 75 40 102 37 3 12 11 x 17
4405055220
4405070320		 220
320		 55
70		 165 99 55 125 46 4 14 12,5 x 18
4400070340
4400070540		 340
540		 55
70		 188 112 60 140 50 4 16 12,5 x 20
4405055370
4405070570		 370
570		 55
70		 204 126 70 162 58 5 18 14,5 x 22
4405055600
4405070900		 600
900		 55
70		 227 143 80 180 70 5 20 - 22 16,5 x 26
4405055650
4405701000		 650
1000		 55
70		 250 171 100 202 70 5 20 - 22 16,5 x 25
4405055800
4405701100		 800
1100		 55
70		 310 210 140 254 73 6 24 20,5 x 35
