VibraTECH-1 Seismic Vibration Isolator
Vibration Spring Mounts with steel housing combine isolation and restraint properties. Robust design for resisting seismic movements and wind loads.

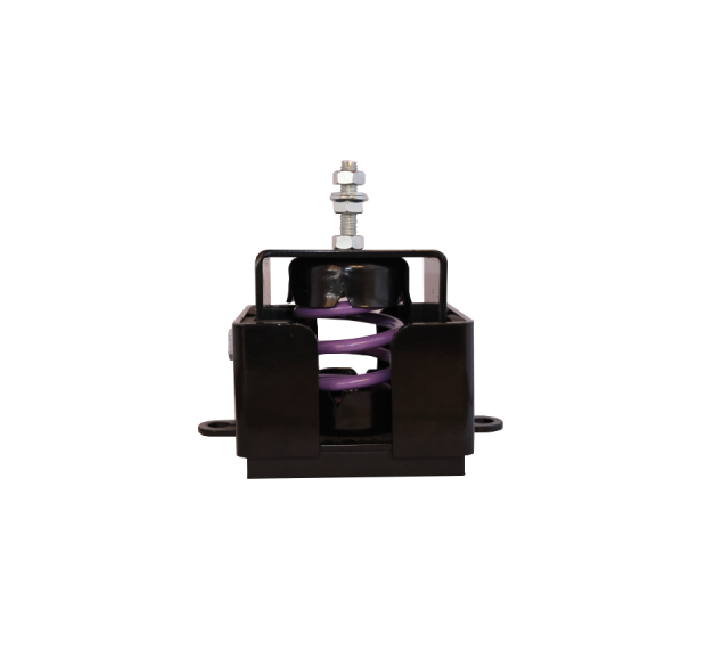

VibraTECH-Mini Seismic Vibration Isolator

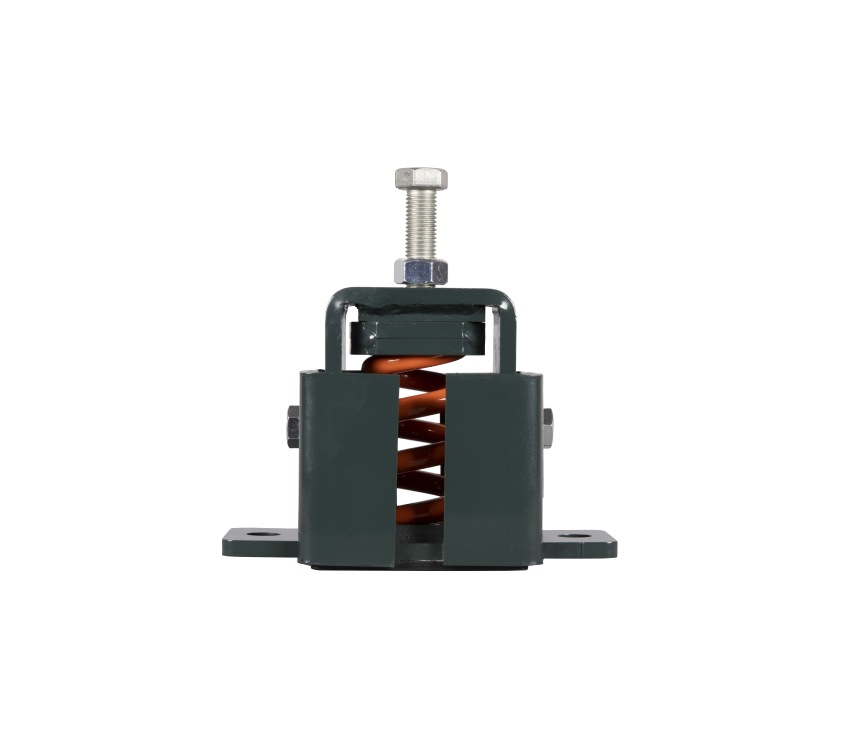

VibraTECH-1 Seismic Vibration Isolator
- Place the mounts regarding the coordination of each mount.
- Place the equipment locating the load of the machinery on the top housing.
- Give extreme caution not to overload the springs, distribute the load evenly on all mounts.
- By the help of leveling screw level the equipment until reaching the operating height.
- Tighten traction screws on sides correctly.
- In case of replacing or moving the mounts, move the equipment and remove the weigth on the mounts.
• Material : Steel
• Coating : Electrostatic Powder Coating
• Natural Freq. : 3 ~ 4 Hz
• Approval : TÜV-ANSI ASHRAE 171
• The steel housing prevents the equipment from moving. •
The rubberized base provides additional insulation for the medium and high frequencies transmitted by the springs.
| Kod Code |
Yük Load (Kgf) |
Çökme Deflection (mm) |
k (kg/mm) |
Renk Kodu Color Code |
A (mm) |
B (mm) |
C (mm) |
ØD (mm) |
ØF (mm) |
| 4400500150 | 150 | 22 | 6,82 | Kırmızı / Red | 192 | 93 | 137 | 17 | M.16 |
| 4400500250 | 250 | 11,36 | Sarı / Yellow | ||||||
| 4400050305 | 305 | 13,86 | Beyaz / White | ||||||
| 4400050405 | 405 | 18,41 | Yeşil / Green | ||||||
| 4400050540 | 540 | 24,55 | Gri / Grey | ||||||
| 4400050803 | 803 | 36,50 | Turuncu / Orange | ||||||
| 4400051040 | 1040 | 47,27 | Sarı / Yellow | ||||||
| 4400051250 | 1250 | 56,82 | Kırmızı / Red |
VibraTech isolators can be used for Air Handling Units, Cooling Towers, Fans, Chillers, Coolers, Compressors, Pumps, Centrifugal Fans and Generator Sets.
