VibraPRO Spring Vibration Hanger
VibraPro Series Spring Hangers are designed to isolate vibrations in suspended piping and equipment preventing transmission of vibration to the building structure through the piping systems.

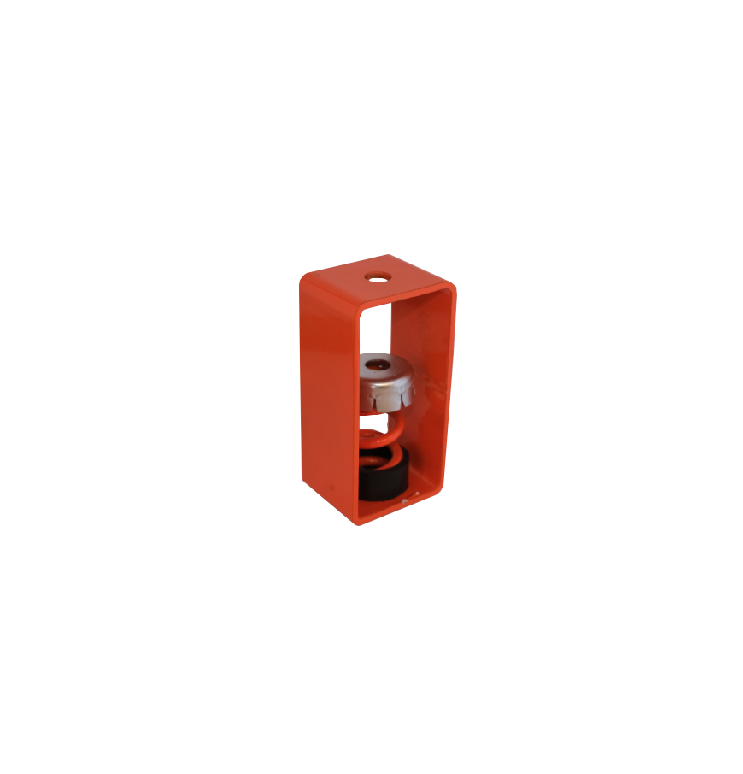

VibraPRO-Mini Spring Vibration Hanger

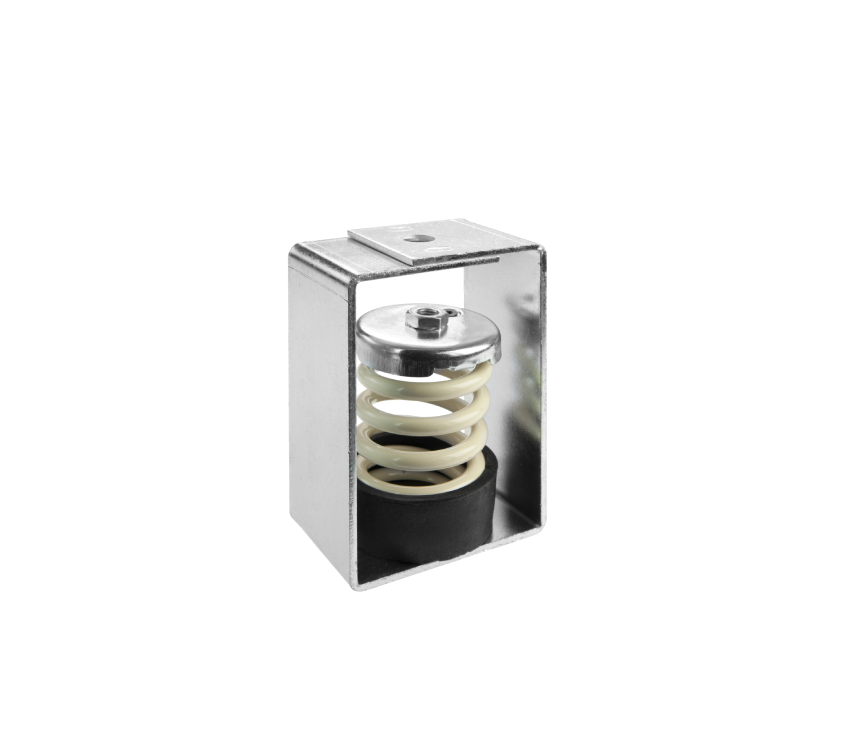

VibraPRO Spring Vibration Hanger/3-4 Hz

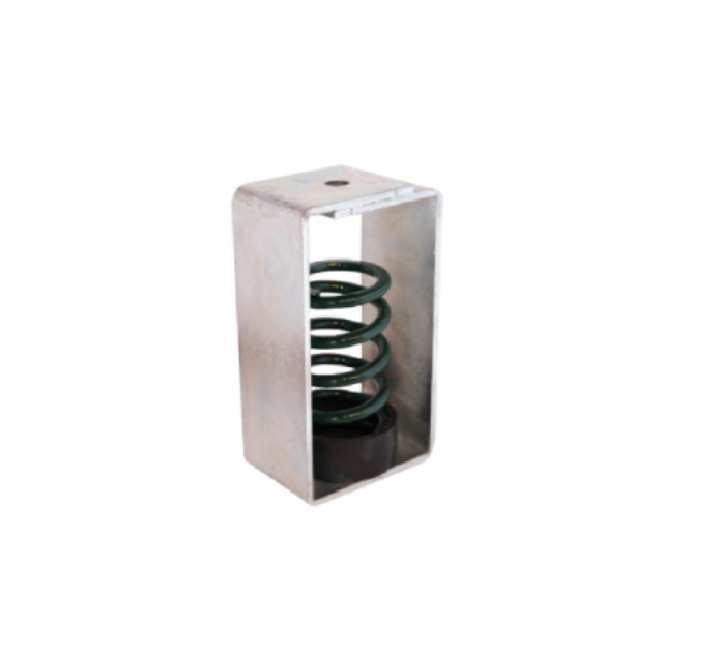

VibraPRO Spring Vibration Hanger/2-2,5 Hz

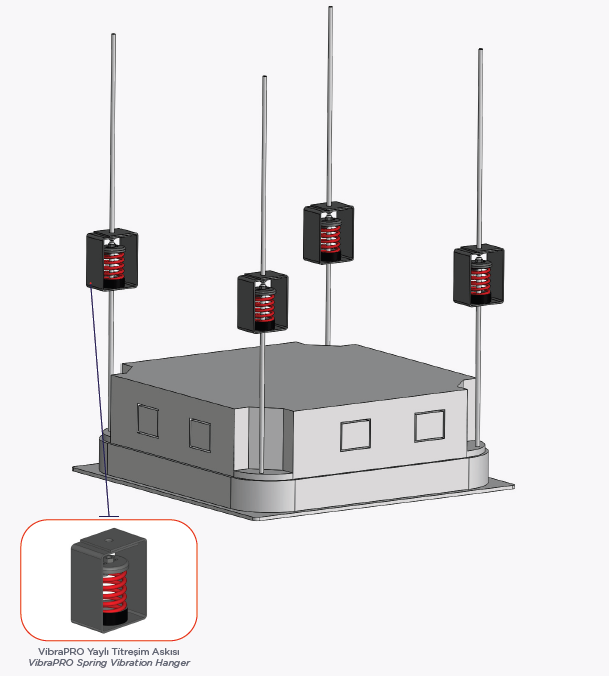

1- VibraPro Spring Mounts can be mounted directly on ceiling struture or can be mounted on any structure type like steel by additional hanger elements.
2- Simple installation to the structure through the top hole on the housing.
3- Threaded rods should be fastened to the nut on the spring.
• Material : Steel
• Coating : Zinc Plated
• Electrostatic Powder Coating
• Natural Freq. : 3 ~ 4 Hz
• It prevents vibration from reaching the building structure through pipe systems.
• Neopren element is protected by electro-galvanised or powder coated metal housing.
• Combination of spring and neoprene element provides high and low frequency vibration isolation.
| Kod Code |
Yük Load (Kgf) |
Çökme Deflection (mm) | k (kg/mm) |
Renk Kodu Color Code |
A (mm) |
B (mm) |
C (mm) |
ØD (mm) |
E (mm) |
|
| 4400020201 | VibraPro | 25 | 22 | 1,14 | Siyah / Black | 81 | 121 | 50 | 13 | M.8/M.10/M.12 |
| 4400020202 | 50 | 2,27 | Mor / Purple | 81 | 121 | 50 | 13 | M.8/M.10/M.12 | ||
| 4400020203 | 75 | 3,41 | Gri / Grey | 81 | 121 | 50 | 13 | M.8/M.10/M.12 | ||
| 4400020204 | 100 | 4,55 | Beyaz / White | 81 | 121 | 50 | 13 | M.8/M.10/M.12 | ||
| 4400020205 | 150 | 6,82 | Siyah / Black | 81 | 121 | 50 | 13 | M.8/M.10/M.12 | ||
| 4400020206 | 250 | 11,36 | Kırmızı / Red | 81 | 121 | 50 | 13 | M.8/M.10/M.12 | ||
| 4400020207 | 305 | 13,86 | Beyaz / White | 88 | 162 | 60 | 13 | M.8/M.10/M.12 | ||
| 4400020208 | 405 | 18,41 | Yeşil / Green | 88 | 162 | 60 | 13 | M.8/M.10/M.12 | ||
| 4400020209 | 540 | 24,55 | Gri / Grey | 88 | 162 | 60 | 13 | M.8/M.10/M.12 |
