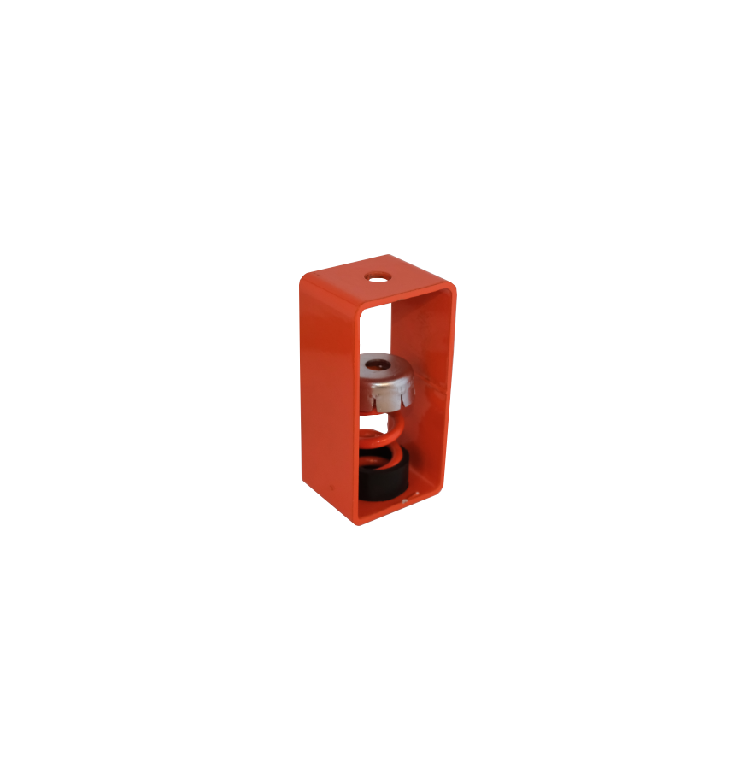

VibraPRO-Mini Spring Vibration Hanger
Used for vibration isolation of suspended equipment and pipelines.

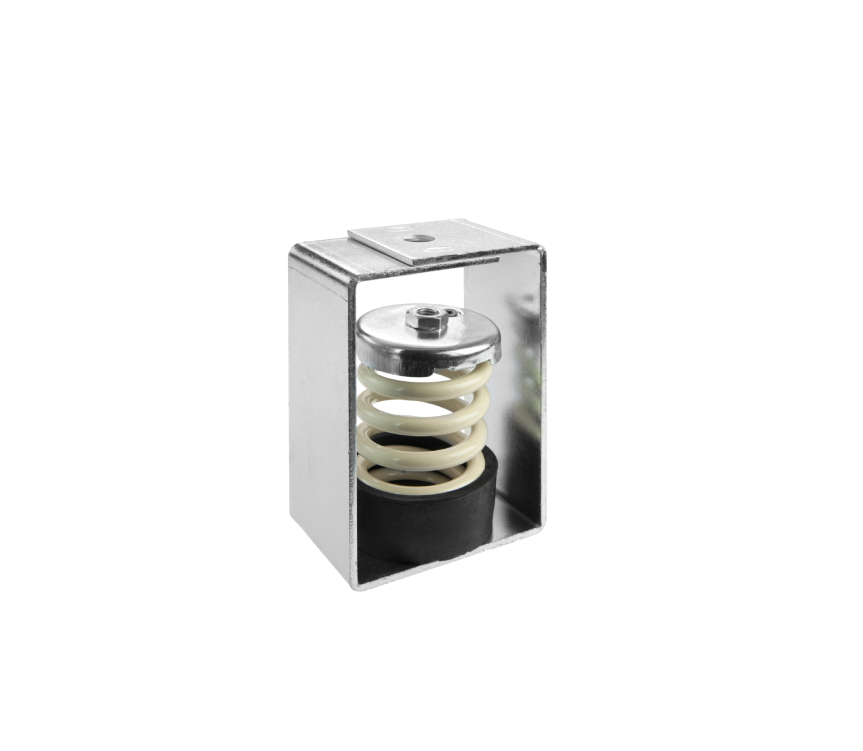

VibraPRO Spring Vibration Hanger

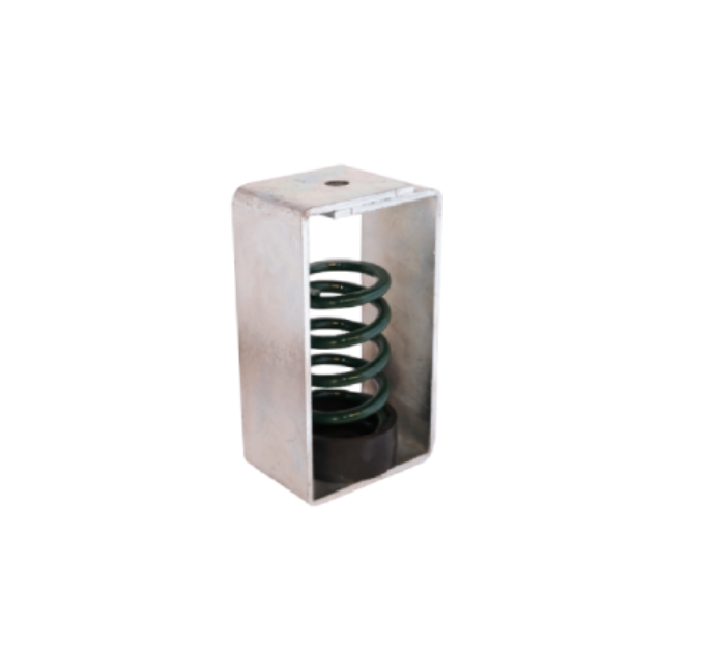

VibraPRO2 Spring Vibration Hanger
VibraPRO-Mini Spring Vibration Hanger
• Material : Steel
• Coating : Zinc Plated,
• Electrostatic Powder Coating
• Natural Freq. : 3 ~ 4 Hz
| Kod Code |
Yük Load (Kgf) | Çökme Deflection (mm) | k (kg/mm) |
Renk Kodu Color Code |
A (mm) |
B (mm) |
C (mm) |
ØD (mm) |
E (mm) |
|
| 4400010218 | VibraPro Mini | 18 | 22 | 0,82 | Siyah / Black | 50 | 100 | 40 | 11 | M.8/M.10 |
| 4400010225 | 40 | 1,82 | Kırmızı / Red | 50 | 100 | 40 | 11 | M.8/M.10 | ||
| 4400010226 | 70 | 2,28 | Sarı / Yellow | 50 | 100 | 40 | 11 | M.8/M.10 | ||
| 4400010227 | 80 | 3,64 | Beyaz / White | 50 | 100 | 40 | 11 | M.8/M.10 | ||
| 4400010228 | 150 | 6,82 | Turuncu / Orange | 50 | 100 | 40 | 11 | M.8/M.10 |

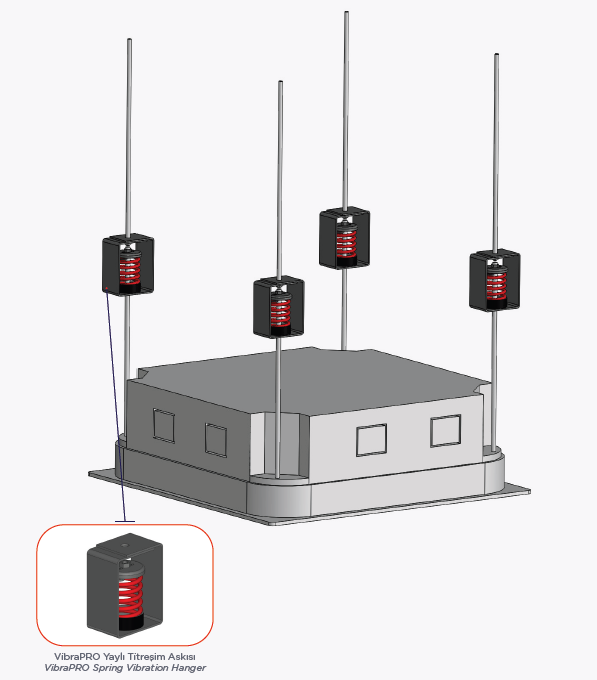

• VibraPro Spring Isolators can be mounted directly to the ceiling structure or can be mounted to other types of structures such as steel using additional suspension elements.
• It can be easily mounted to the structure thanks to the top hole in the housing.
• Threaded rods must be fixed to the nut on the spring.
