VibraPLUS-2 Seismic Vibration Isolator

VibraPLUS-2 Seismic Vibration Isolator

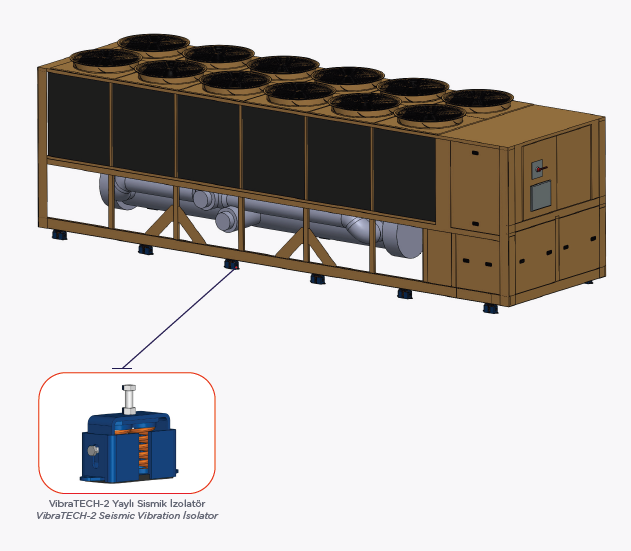

Vibration Spring Mounts with steel housing combine isolation and restraint properties. Robust design for resisting seismic movements and wind loads. Springs allow isolation of low frequency vibrations generated by the machinery.

File Name Subject Link
VibraPLUS-2 Technic Drawing
VibraPLUS-2 Autocad
VibraPLUS-2 Solid-3D
VibraPLUS-2 IGS-3D
  1. Place the mounts regarding the coordination of each mount.
  2. Place the equipment locating the load of the machinery on the top housing.
  3. Give extreme caution not to overload the springs, distribute the load evenly on all mounts.
  4. By the help of leveling screw level the equipment until reaching the operating height.
  5. Tighten traction screws on sides correctly.
  6. In case of replacing or moving the mounts, move the equipment and remove the weigth on the mounts.

• Material : Steel

• Coating : Electrostatic Powder Coating

• Natural Freq. : 2 ~ 2,5 Hz

• Approval : TÜV-ANSI ASHRAE 171

• The steel housing prevents the equipment from moving.

• The rubberized base provides additional insulation for the medium and high frequencies transmitted by the springs.





Kod
Code		 Yük
Load (Kgf)

Çökme Deflection
(mm)

 k
(kg/mm)		 Renk Kodu
Color Code		 A
(mm)		 B
(mm)		 C
(mm)		 ØD
(mm)		 ØF
(mm)
4420000130 130 50 2,6 Siyah / Black 274 95 141 17 M.16
4420000190 190 3,8 Yeşil / Green
4420000270 270 5,4 Gri / Grey
4420000380 380 7,6 Kırmızı / Red
4420000520 520 10,4 Sarı / Yellow
4420000620 620 12,4 Beyaz / White
4420000940 940 18,8 Siyah / Black 338 123 187 17 M.16
4420001400 1400 28,0 Yeşil / Green
4420002000 2000 40,0 Gri / Grey
4420002800 2800 56,0 Kırmızı / Red
