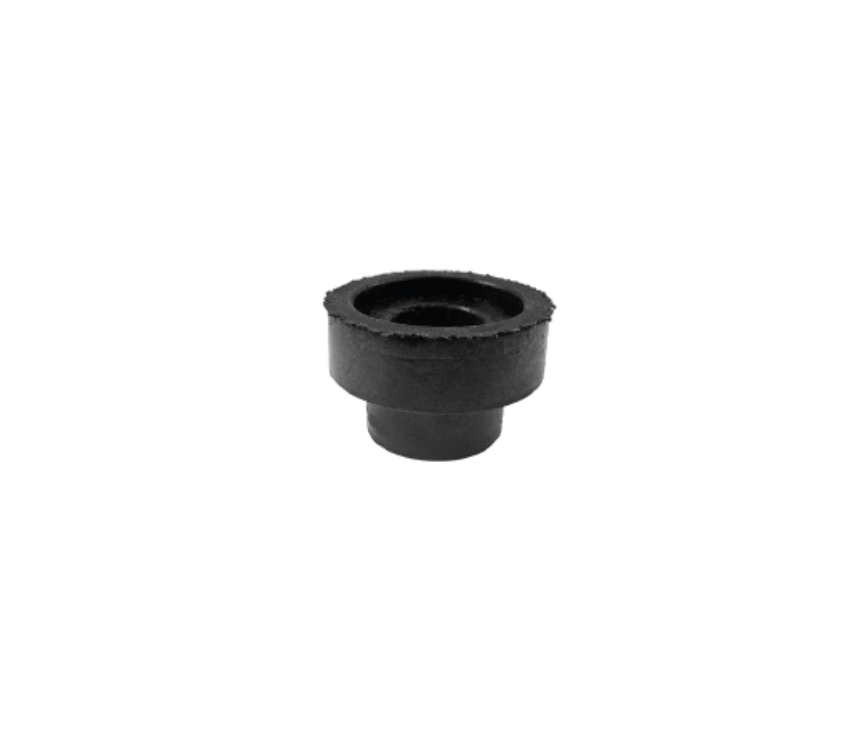

Rubber Bushing Gasket
It prevents vibration transmission between the device and the anchorage element and reduces the shear force on the anchorage element with its flexible structure.
M8
M10
M12
M16
• Material : Natural Rubber
• Rod Size : M8, M10, M12 and M16
| Kod Code |
A (mm) |
B (mm) |
C (mm) |
Ød1 (mm) |
Ød2 (mm) |
| BVI-8 | 22 | 14 | 6 | 9 | 15 |
| BVI-10 | 26 | 16,5 | 8 | 11 | 17 |
| BVI-12 | 30 | 17 | 8 | 13 | 19 |
| BVI-16 | 36 | 19,5 | 10 | 17 | 23 |
