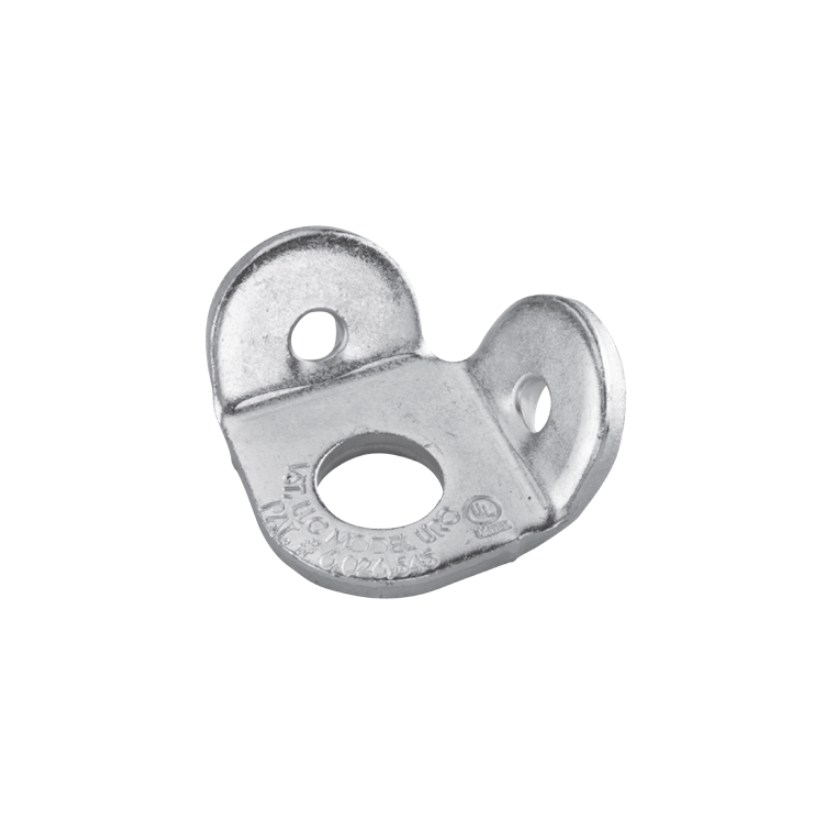

Universal Seismic Bracket
Ideal design for connecting the cable bracket to the structure.
M11
M14
• Material : Steel
• Coating : Electro Galvanised
• Approval : UL Approved
• Standard : UL 203A
| Kod Code |
Halat Kodu Cable Code |
Delik Ölçüsü Hole Size (mm) |
Kalınlık Thickness (mm) |
UL Liseli Yük UL Listed Load (N) |
|
| 3200402190 | Kırmızı / Red | 11 | 4 | 2.668 | |
| 3200402191 | Beyaz / White Mavi / Blue | 14 | 4 | 4.893 | |
