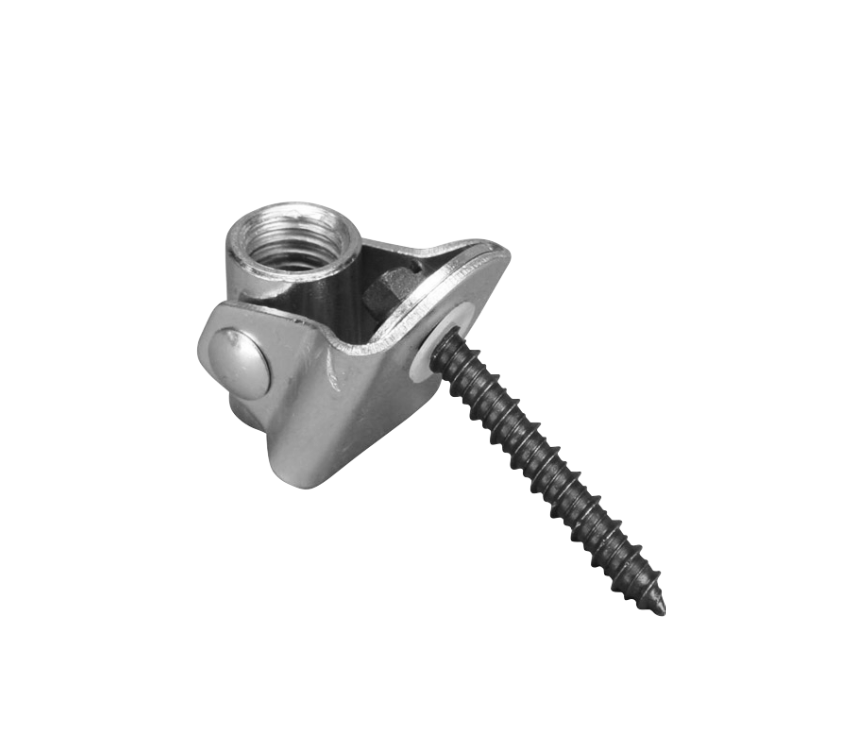

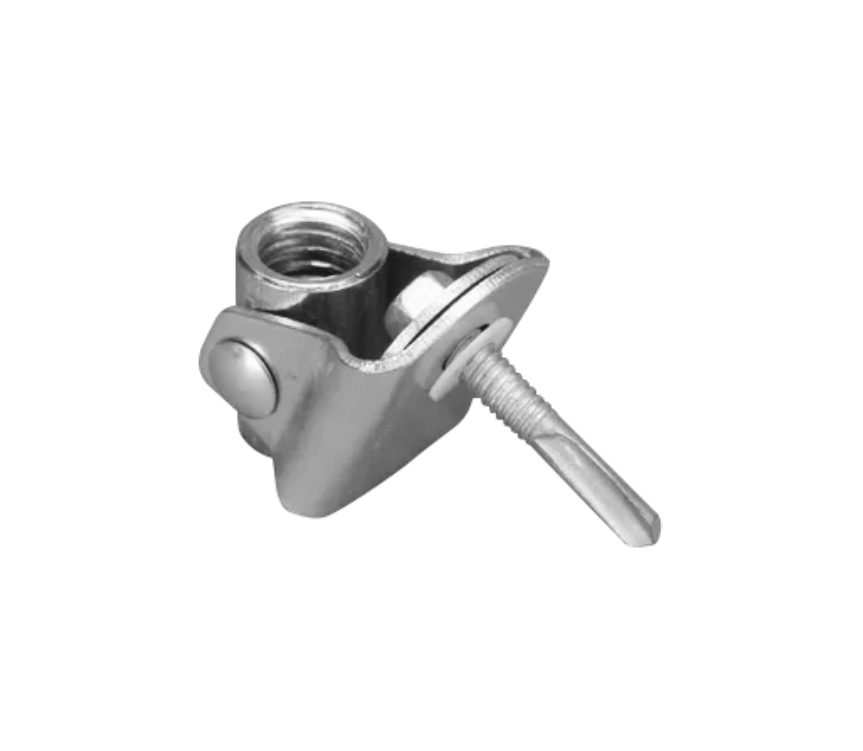

Branch Line Structure Pipe Attachment

Step 1: Drill the hole with proper diameter and length

Step 2: For secure connection, clean the hole from residues.

Step 3: Install the structure attachment into the hole by screwing.

Step 4: Check the screw to avoid loose installation

Step 5: Connect threaded rod into the attachment.

• Material : Steel• Coating : Zinc Plated
• Approval : UL Listed and FM Approved

• Swivel barrel nut accepts 3/8" or 1/2" (M10 or M12) threaded rod

• Attaches to wood, steel or concrete where cracked concrete approval is not needed

• Traditional methods for installing branch line restraints in fire sprinkler systems are cumbersome and time-consuming.

• Contractors often cut (and re-cut) threaded rod to precise measurements to restrain the sprinkler pipe with a loop hanger and surge restraint.

• To avoid these laborious methods, nVent has modernised this process and developed the Branch Restraint System.
