U-Bolt Clamp - DUP
U Bolt clamp from threaded rod.
• Installation of standing or hanging pipes.
• Material : Steel, EPDM
• Coating : Electronic zinc plated
| Kod Code |
Boyut Size |

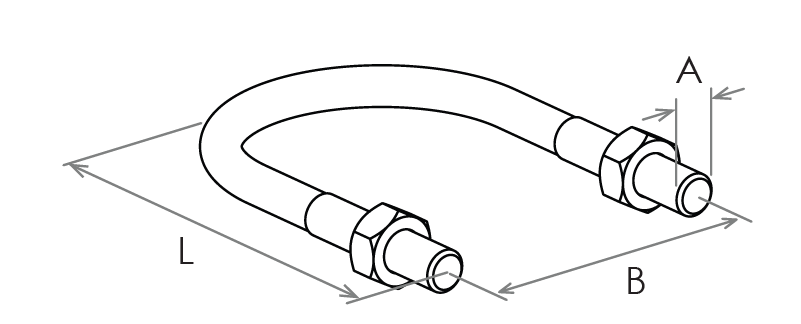

A (mm) | L (mm) | B (mm) | Kutu Adeti Box Qty. |
|
| 2310005000 | ½" | M.6 | 40 | 28 | 10 | |
| 2310007000 | ¾" | M.8 | 50 | 36 | 10 | |
| 2310010000 | 1" | M.6 | 55 | 43 | 10 | |
| 2310012000 | 1 ¼" | M.6 | 68 | 51 | 10 | |
| 2310015000 | 1 ½" | M.6 | 70 | 58 | 10 | |
| 2310020000 | 2" | M.6 | 80 | 69 | 10 | |
| 2310025000 | 2 ½" | M.10 | 110 | 88 | 10 | |
| 2310030000 | 3" | M.10 | 115 | 102 | 10 | |
| 2310040000 | 4" | M.12 | 156 | 128 | 5 | |
| 2310050000 | 5" | M.12 | 185 | 156 | 5 | |
| 2310060000 | 6" | M.12 | 210 | 184 | 5 | |
| 2310080000 | 8" | M.12 | 270 | 236 | 5 | |
