Sliding Frame DSF 1-2
Double supported sliding element for compensation of axial expansion due to temperature variations.
DSF 1-2
DSF 3
• Different fasting options with M10,M12 and M16 hole dimensions.
• Side brackets allows easy installation on both structural elements and MFS Strut Channels.
• Material : Steel
• Coating : Electronic zinc plated
• Friction Factor : 0,16 - 0,18
• Quick and easy installation with the combination of MFS Strut Channels.
• Depending on the version, provides up to 200 mm slide length which compansates large changes in lengths.

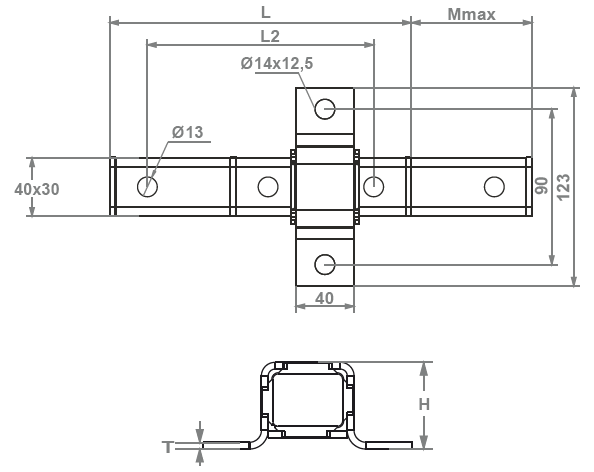

| Kod Code |
Boyut Size |
L (mm) | H (mm) | L2 (mm) | Hareket (mm) Tavelling (mm) |
Delik Ölç. (mm) Hole Size (mm) |
Kutu Adeti Box Qty |
|||
| 2200127137 | 30x40x2x200 | 208 | 51 | 145 | 85 | 13 | 10 | |||
| 2200127138 | 30x40x2x250 | 258 | 51 | 195 | 135 | 13 | 10 | |||
| 2200127139 | 50x50x3x250 | 260 | 76 | 195 | 127 | 13/17 | 10 | |||
Can be utilized for suspended and structure mounted pipe lines. Various height adjusted pipe clamps may be used combined with threaded pins.
