VibraMount Vibration Absorber Agraf -1
Agraph preventing the transmission of noise-induced vibration on hanging ceilings and curtain walls to the building structure.

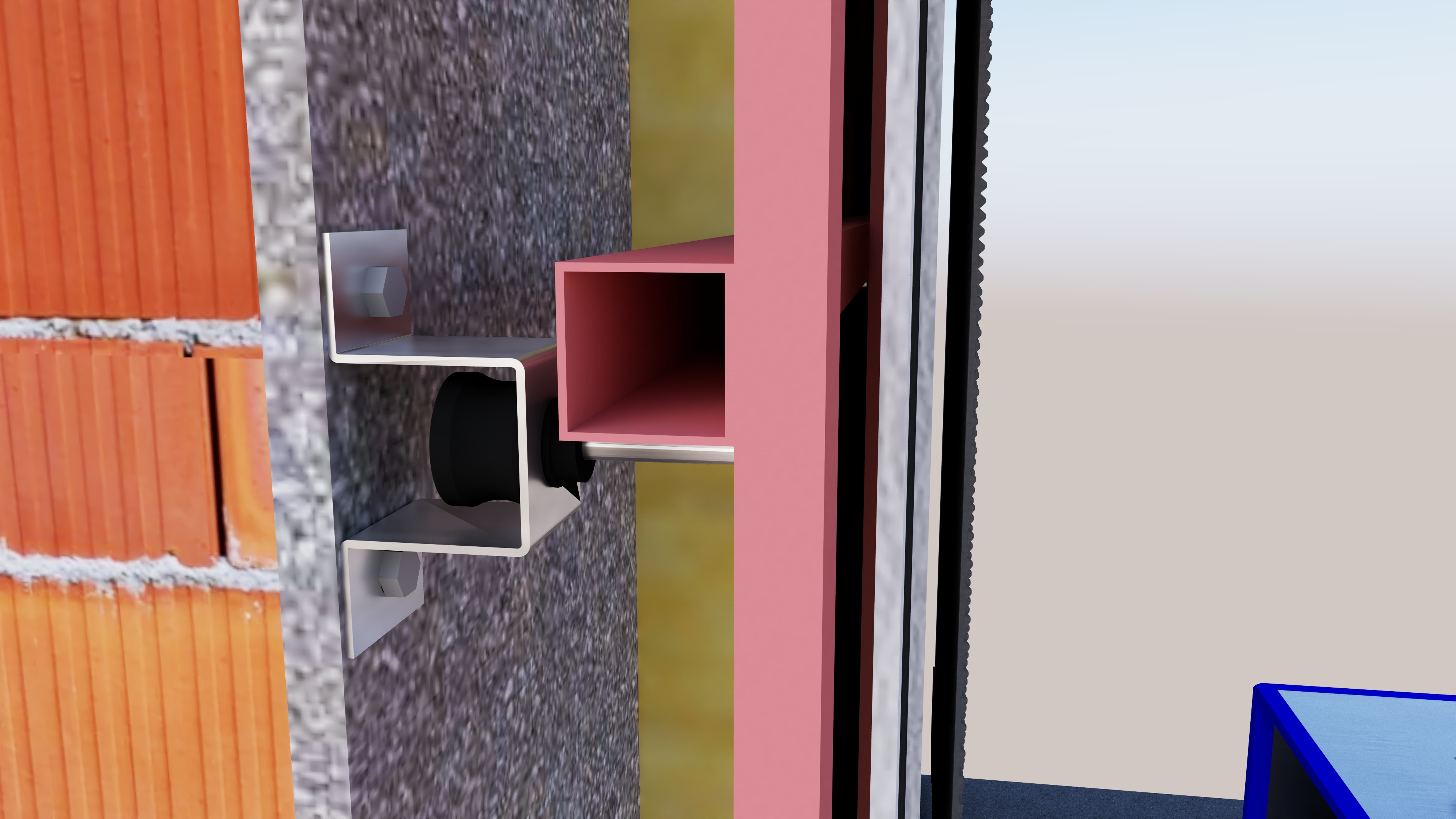

• Agraf is fixed with dowels or bolts through 2 anchor holes.
• The rod passed through the rod hole is tightened with a nut on the sheet plate on the rubber wedge.
• The assembly is completed by connecting ceiling/wall carrier profiles or hanging device to be transported to the exposed end of the rod.
Areas of use
Hanging ceilings
Curtain walls
Hanging equipment
• It is used to prevent the transmission of noise-induced vibration on hanging ceilings and curtain walls to the building structure.
• It is used for vibration insulation of hung equipment operating at high frequencies.
• Can be used up to 50 kg load.
• VibraMount vibration absorber agraps are special fasteners developed to reduce the transmission of vibration and impact-induced sounds to building elements, especially in suspended ceiling systems and wall coverings.
• These agraphs significantly improve acoustic performance by isolating the vibration source from the carrier structure with damping elements such as elastomer or spring.
• It is widely used in areas with high sound insulation requirements such as cinema halls, residences, hotels, offices, machine rooms and studios.
• The engineering-orientated design of VibraMount agraphs provides a long-lasting and reliable isolation solution, while providing practicality to practitioners with ease of installation.
