Beam Clamps
Suitable for installation of piping, airducts and springler systems from steel constructions and girders with threaded rods.
• Easy grip of the steel girder with high load capacity. Drillig or welding are not required.
• Simple and quick height adjustment. Available with M8, M10 and M12 thread sizes.
• Material: Malleable iron
• Coating: Zinc plated
• Hexagonal bolt according to DIN 933, 8.8
Kod / Code |
Ölçü Size |

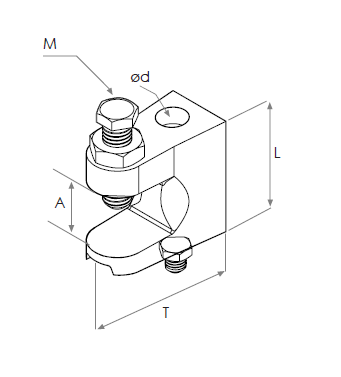

A(mm) | t (mm) | L (mm) | M (mm) | Ød | Kopma Yükü Breaking Load (kN) |
| 2200116150 | M.8-10 | 21,8 | 50 | 46 | M.10 | 11 | 17 |
• Also available for suspension of crossbars or trapeze structure made with MFS Strut Channels.
• UL listed and FM approved.
