Angle Fitting DFT
The application-oriented connection of ATL profiles to built up racks.
DFT.80
DFT.100
| File Name | Subject | Link |
|---|---|---|
| DFT.80 | Technic Drawing | |
| DFT.80 | Autocad | |
| DFT.80 | Solid-3D | |
| DFT.80 | IGS-3D | |
| DFT.100.3 | Technic Drawing | |
| DFT.100.3 | Autocad | |
| DFT.100.3 | Solid-3D | |
| DFT.100.3 | IGS-3D | |
| DFT.100.4 | Technic Drawing | |
| DFT.100.4 | Autocad | |
| DFT.100.4 | Solid-3D | |
| DFT.100.4 | IGS-3D |
• Fix the DFT Corner Connection Adapter into the ATL profile in the horizontal direction to be connected and align the holes.
• Fix to the profile/profiles with self-forming MD bolt. Tightening and threading with the bolt should be completed after the flange touches the sheet.
• Material : Steel S235JR (material no. 1.0038) acc. to DIN EN 10025-2
• Galvanisation : Hot-dip galvanised, min. 75 μm, acc. to DIN EN ISO 1461
| Kod Code |
Açıklama Description |

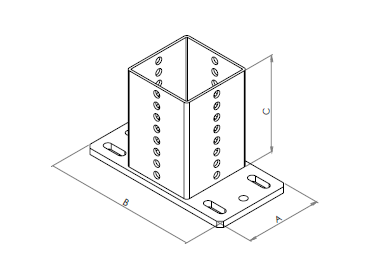

A (mm) | B (mm) | C (mm) | t (mm) | Ød (mm) |
| 2200192856 | DFT.80 | 80 | 180 | 125 | 6 | 10x30 / 10 |
| 2200113073 | DFT.100 | 100 | 200 | 125 | 8 | 10x30 / 10 |
| 2200192863 | DFL.80 | 80 | 165 | 125 | 6 | 10x25 / 10 |
| 2200113074 | DFL.100 | 100 | 185 | 125 | 8 | 10x30 / 10 |
Watch the installation video to see how it’s done.
